For Ambulance

Ambulance Stretcher

Code : USI -1008

Description :

• Light weight, strong structure, lovely design, good arts and crafts, easy antisepsis, small size, convenient to use.
• Utilizes high precision mechanical transmission.
• Can be used automatically folded through the left and right hand control handle. Made of high quality aluminium alloy tubes.
• Dimensions:
  • A – High Position: 1900 x 560 x 900mm
  • B – Low position: 1900 x 560 x 280mm
• Load weight: upto 120Kg
• Product weight: 40 Kg
• Diameter of the castors: 125mm
• Applicable for various kind of hospitals, emergency centers, ambulances and battle fields.

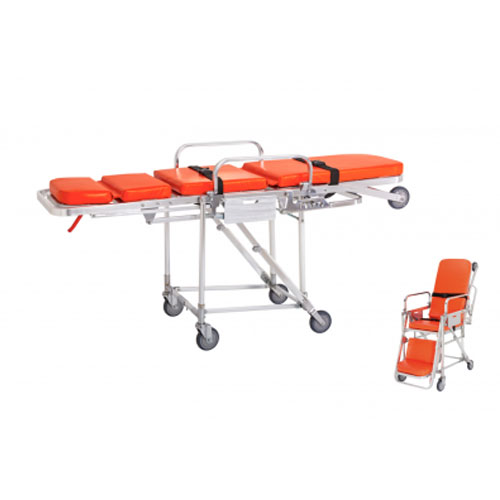

Wheelchair Stretcher With Varied Positions

Code : USI -985

Description :
Automatic wheelchair type stretcher is mainly used to transport the sick, wooded outdoor. It's a necessary accessory on ambulances and could be folded as wheelchair in narrow stairs or elevators. This model is made of high quality aluminium alloy, with characteristics such as light weight, good appearance, reasonable configuration, convenience operation, antisepsis. Besides, it also can prevent rust and easy to clean. It has soft foam mattress on the surface and protecting block sidely. It's an easy operation stretcher.

Technical parameter:
(Product size)(L x W x H) : 190 x 59 x 85cm
(Net weight) : 45kg
(The bearing pressure): <159kg
(Dimension of the packing box): 200 x 60 x 27cm
(Gross weight); 55kg

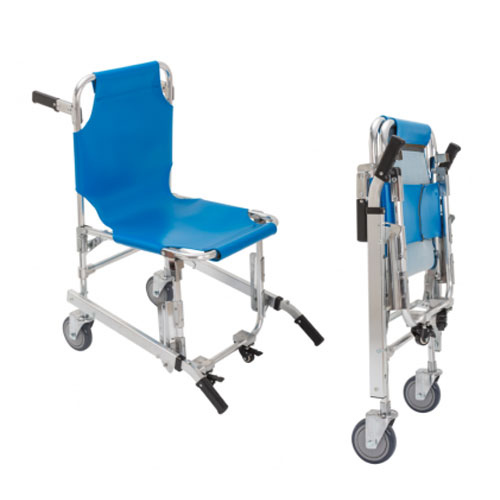

Wheel Chair Stretcher

Code : USI -910

Description :
Wheelchair type stretcher, made of high quality alumiunium alloy, it is mainly used in some areas with difficult traffic or entry such as narrow halls, gangways, cloister or stair with several turnings.

Technical Parameter :

Folded Size	: 93 x 51 x 16cm
Folded into wheelchair	: (Back height) 91 cm (Width) 50 cm   (Seat-height) 49 cm (Width) 50 cm
Net weight	: 8kg
Dimension of the packing box	: 100 x 55 x 20cm
Gross weight	: 12kg

Folding Stretcher (Canvas)

Code : USI -1095A

Description :

• M.S. Pole width wise fold.
• Overall size 213L x 56W x 15H cms
• Finish : Pretreated and Epoxy powder coated.

Folding Stretcher

Code : USI -1095B

Description :

• Aluminium folding lengthwise as well as width wise.
• 4 Fold, provided with bag.
• Overall size 210L x 53W x 12H cms
• Folded size: 61L x 30W x 12H cms.
• Load Bearing capacity 159 Kgs.

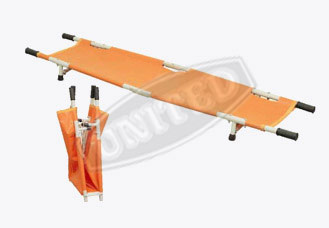

Folding Stretcher (Canvas)

Code : USI -1095C

(213L x 56W x 15H cms)
Aluminium poles but folding lengthwise as well as width wise.

Description :

• M.S.Pole folding lengthwise as well as width wise
• Overall size 213L x 56W x 15H cms
• Finish : Pretreated and Epoxy powder coated.
