Patient Handling System for Hospital

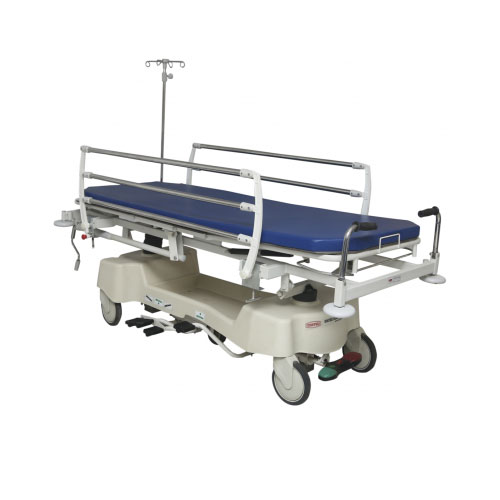

Multi Function Hydraulic Stretcher Trolley

Code : USI - E8

Description :

• Foot operated Hydraulic System mechanism by stepping on the pedal located on both sides of stretcher for Hi – Low, Trendelenburg & Reverse Trendelenburg adjustments.
• Smooth Pneumatic mechanism to raise Backrest.
• Kneerest position Obtained by Smooth Crank System with S.S. Foldable Handle at foot end.
• Four section X-Ray permeable Platform Top along with Suitable Mattress of 100 mm (4”).
• Two Pieces Individual Detachable Collapsible Safety Side-Rails with safety lock, Stainless Steel Pipe
• Provided with Push/Driving Handle on the head end for smoothing the way of movement conveniently and can be stored while not in use.
• Tubular M.S. Framework mounted on 200 mm (8”) Central Locking Castors
• Bottom Cover with Storage bin.
• Corner buffer provided at 4 locations.
• Urine bag holder provided at both sides.
• S.S. Telescopic I.V. Rod with 4 Hook’s (USI-5002) & provision on all 4 sides

Dimensions (Approx.) :

• Overall Size: 2040L x 810W x 600 – 920H mm
• Stretcher Top Size: 1930L x 735W
• Angle of Back Section: 90°
• Angle of Leg Section: 25°
• Angle of Trendelenburg / Reverse Trendelenburg: 12°/ 10°

Optional Accessories :

• Fifth Wheel
• Oxygen Cylinder Holder
• Foot end Shelf

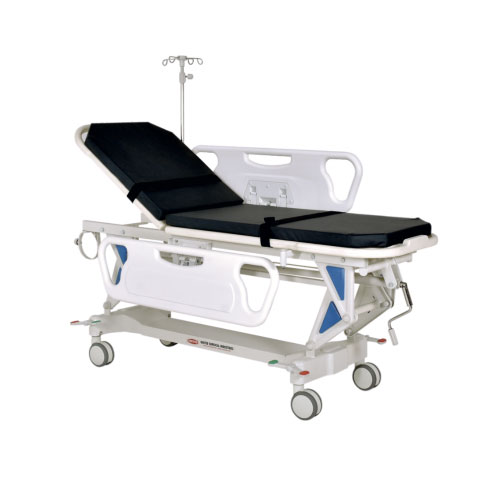

Luxurious Stretcher

Code : USI - E3

Description :

• Smooth Pneumatic mechanism to raise Backrest.
• Hi - Low position obtained by Smooth Crank System with S.S. Foldable Handle at foot end.
• Framework made of mild steel mounted on 125mm (5”) Central Locking Castors
• Two Section PP Platform Top.
• PE engineering plastic moulded two Pieces individual Side Rails.
• Bottom Trolley fully M.S. covered
• Finish: Pretreated & Epoxy Powder Coated.
• Overall Size: 1920L x 680W x 530 – 820H mm.

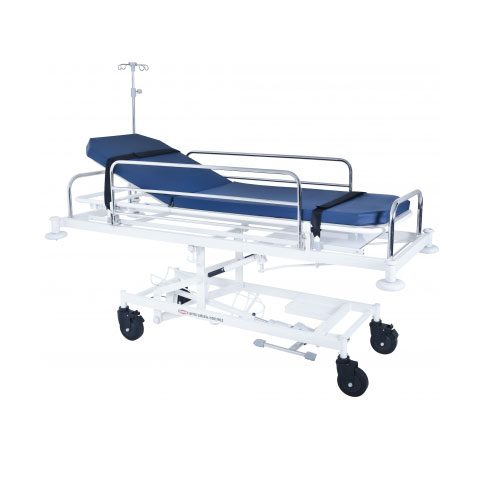

Emergency & Recovery Trolley (Hydraulic)

Code : USI - 1069

Description :

• Tubular M.S. Framework, foot operated hydraulic pump for height adjustment
• Smooth Pneumatic mechanism to obtain Trendelenburg and Reverse Trendelenburg positions.
• Removable two section X-Ray permeable top with Head Raise on Ratchet Mechanism.
• Trolley Mounted on 125 mm (5”) diagonal locking castors
• Provided with Oxygen Cylinder Cage, Sliding X-ray Cassette holder, SS drop down safety side railings, SS telescopic I.V. Rod with 4 hooks, Utility Tray and Suitable Mattress of 50 mm (2”).
• Finish: Pretreated and Epoxy powder coated.

Dimensions (Approx.) :

• Overall Size: 2100L x 670W x 690 – 950H mm.
• Stretcher top Size: 1940L x 605W mm
• Angle of Back Section: 70°
• Angle of Trendelenburg / Reverse Trendelenburg: 9°/ 15°

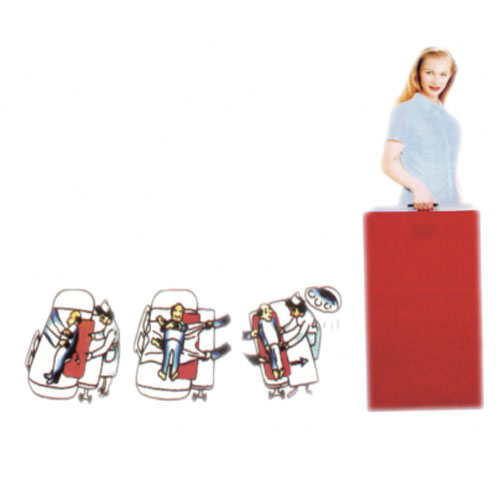

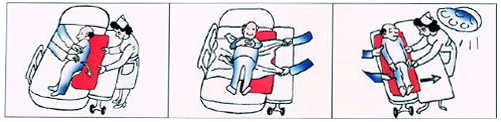

Patient Transfer System

Code : USI - 991

Description :
The patient can slide easily in spite of the different height and weight. The nurses will feel more comfortable when moving the patient, and it is very helpful to the nurses. While moving the patient, particularly the serious patient on the patient beds. Can be shifted from Trolleys, inspection beds, X-ray fluoroscopy tables and operation tables. Materials: Nylon, Plywood, Water resistant maximum load for 15 cms gap will be 200 kgs.

• Objectives of the invention
• The product is simple to use
• Œ cost-effective
• portable and light-weight
• It can not only relieve the hardship of doctors and nurses when moving patients
• Also can relieve pains and adverse affects of patients when being moved
• It is highly recommended in the market
• Increase efficiency
• Increase nursery quality
• Relieve the pains of patients
