Electric Delivery Tables

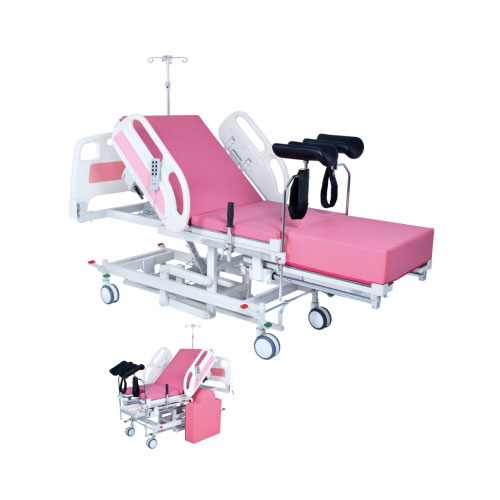

Labour Delivery Room Bed (LDR)

• Advance Liner actuator system with IP54 Liquid splash protection (03 pcs. Motor, 01 pcs. Control box, 01 pcs. Handset]
• PP Head Panels with metal inserts along with lock and corner buffer.
• PP Moulded Two Pieces individual Side Rails.
• Tubular framework mounted on 125mm (5”) Central locking castors.
• Three-section top made of Bakelite sheet covered with 3 section Removable suitable Mattress.
• Positions Obtained/Function’s by Patient Hand Remote: Backrest, Hi – Low, Trendelenburg & Reverse Trendelenburg.
• Leg end section can slide under the main section.
• Height adjustable a pair of foam padded knee crutches.
• S.S Telescopic I.V. Rod with 4 hooks
• Detachable S.S. Tray
• Provided with adjustable S.S. Grip Handles on both sides.
• Finish: Pretreated and epoxy powder coated.

• Overall Size: 2000L x 950W mm
• Platform Size (full extended): 1900L x 660W
• Platform Size (Leg section Slide under):1360L x 660W
• Minimum Height (without Mattress): 680mm
• Maximum Height (without Mattress): 960mm
• Backrest angle: 60°
• TB / RTB: 9° / 12°
